3D laser scanning and as-built documentation of a 4,000 sq ft restaurant space in San Francisco’s Mission District, delivered as full CAD, Revit, and PDF as-builts alongside a 3D virtual tour in just 10 days, to support a new fit-out design for the property owner.
Mission District, San Francisco, CA
4,000 sq ft
Retail & Restaurants
A property owner in San Francisco’s Mission District needed a reliable existing-conditions record of a 4,000 sq ft restaurant space to plan a new fit-out. As with any fit-out project, the design only works if it’s built on data that matches the real space exactly the owner needed documentation the design team could move straight into planning from, without the delays that come from working off incomplete or approximate measurements.

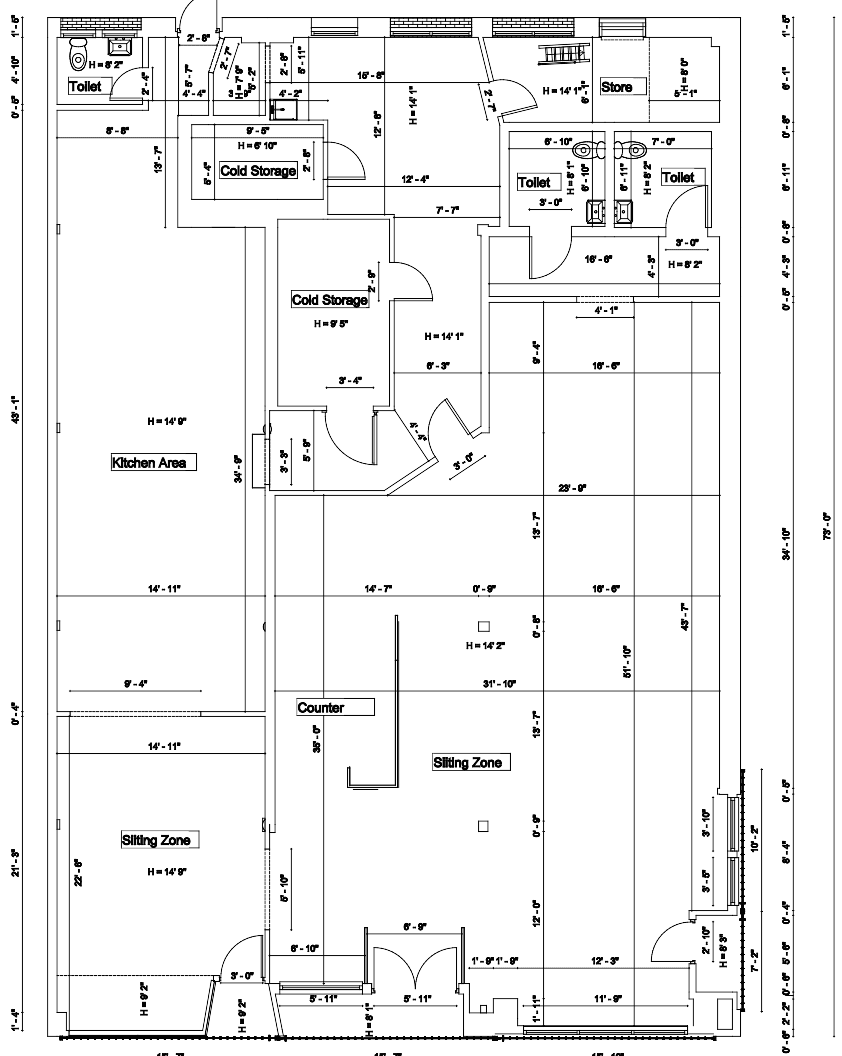

The brief covered the full 4,000 sq ft space, with a coordinated Revit model, complete CAD floor plans, and PDF documentation delivered alongside a full 3D virtual tour, giving the property owner and their design team an accurate and complete record of the existing space to plan the new fit-out around.

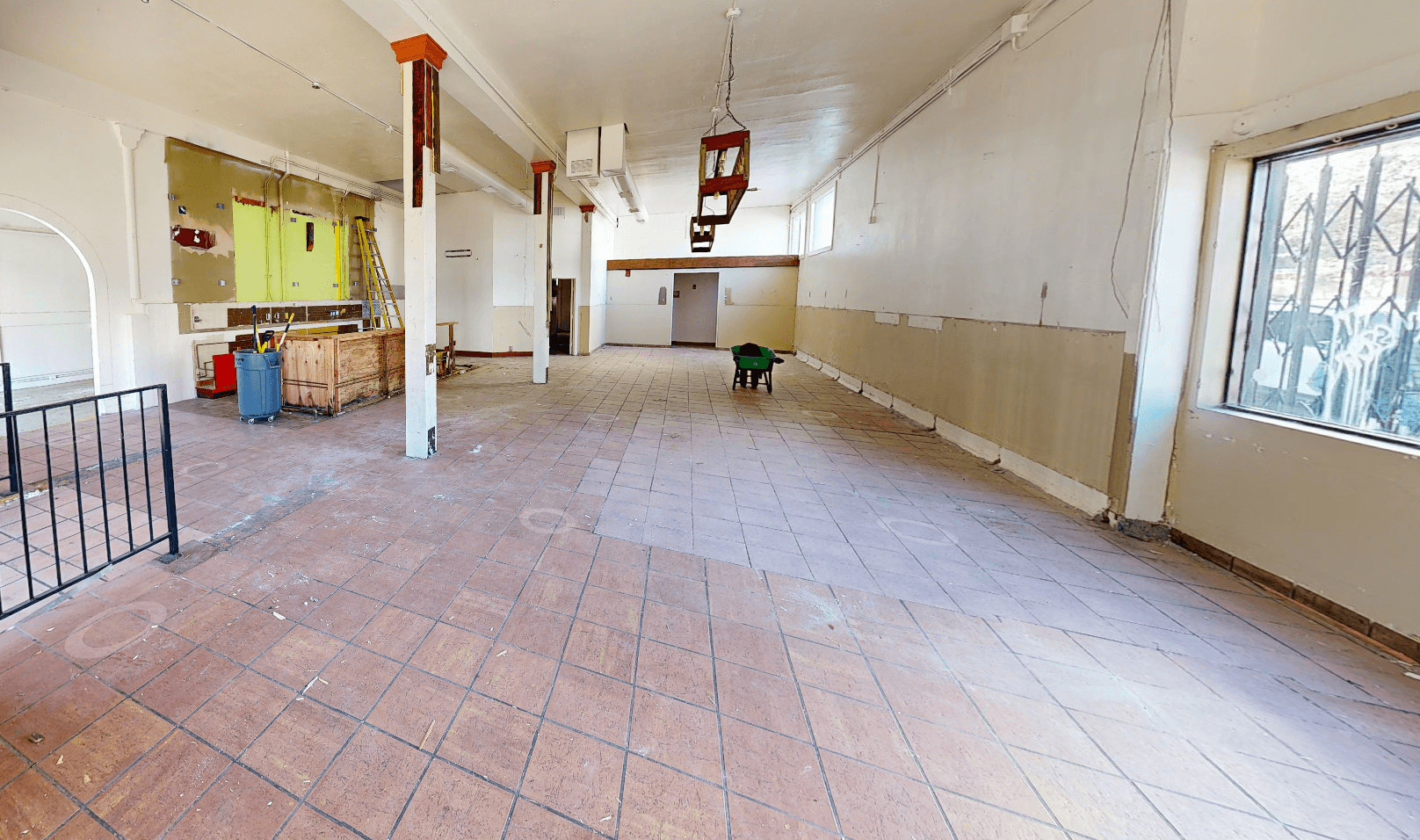

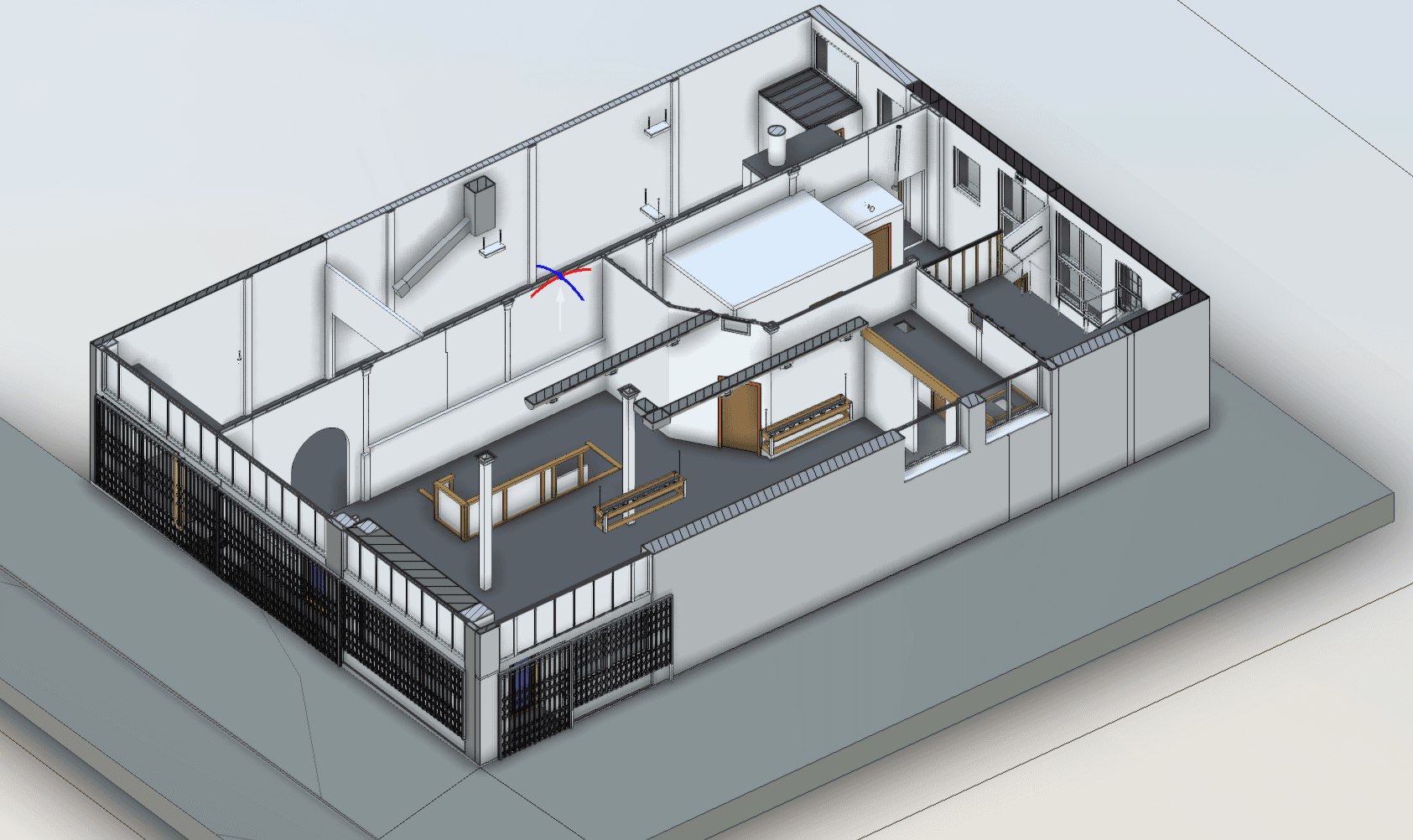

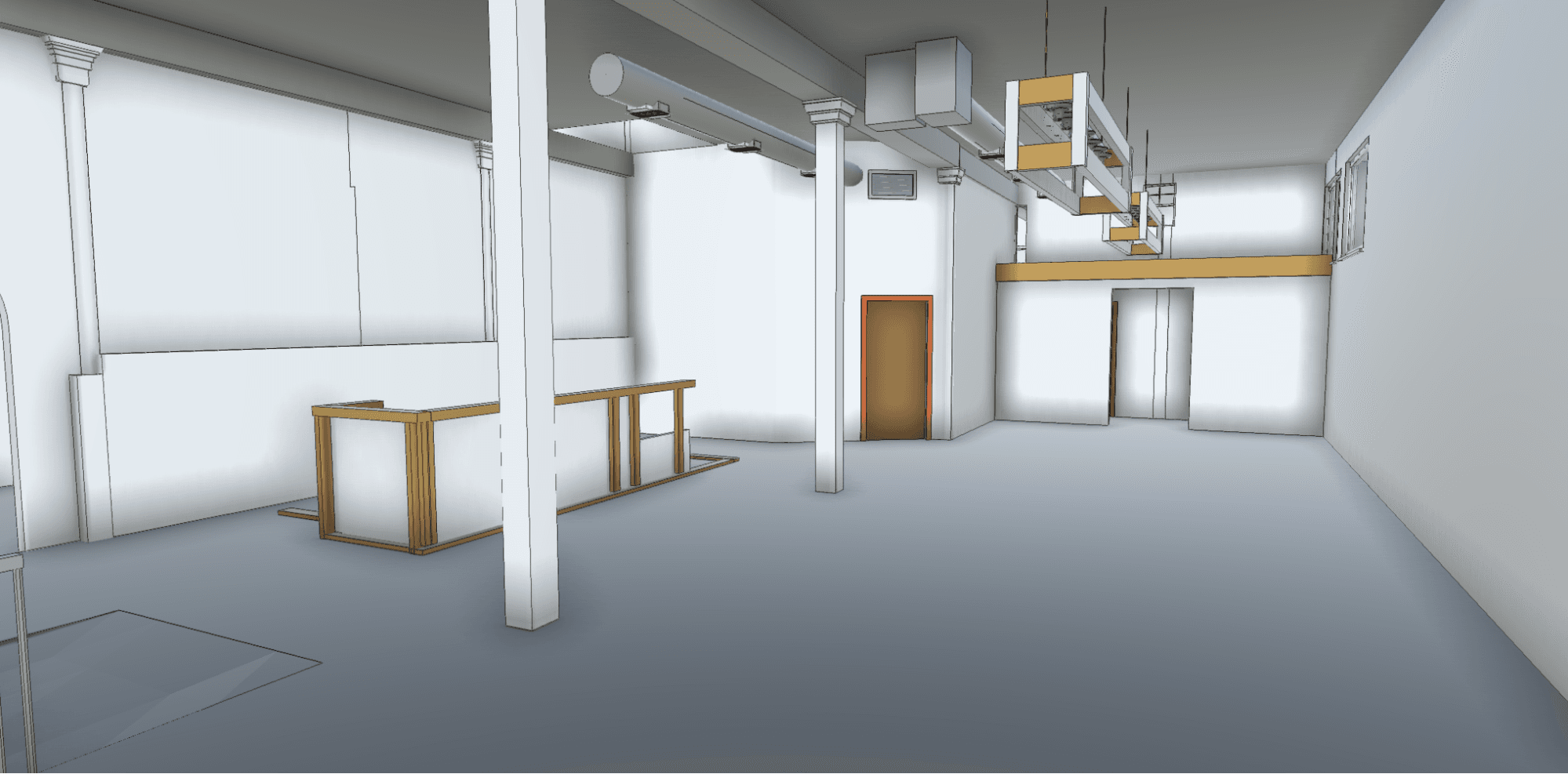

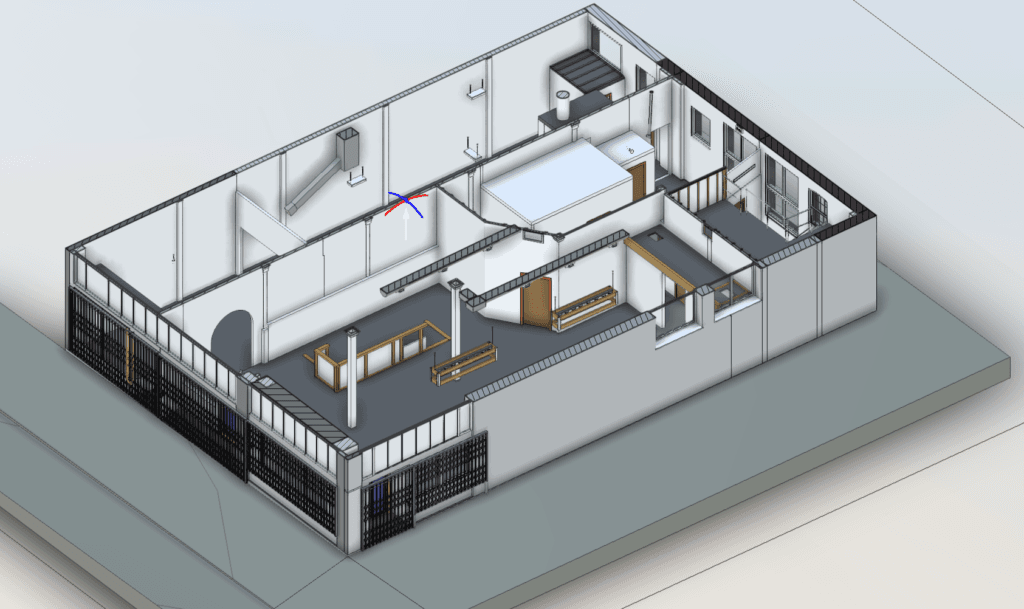

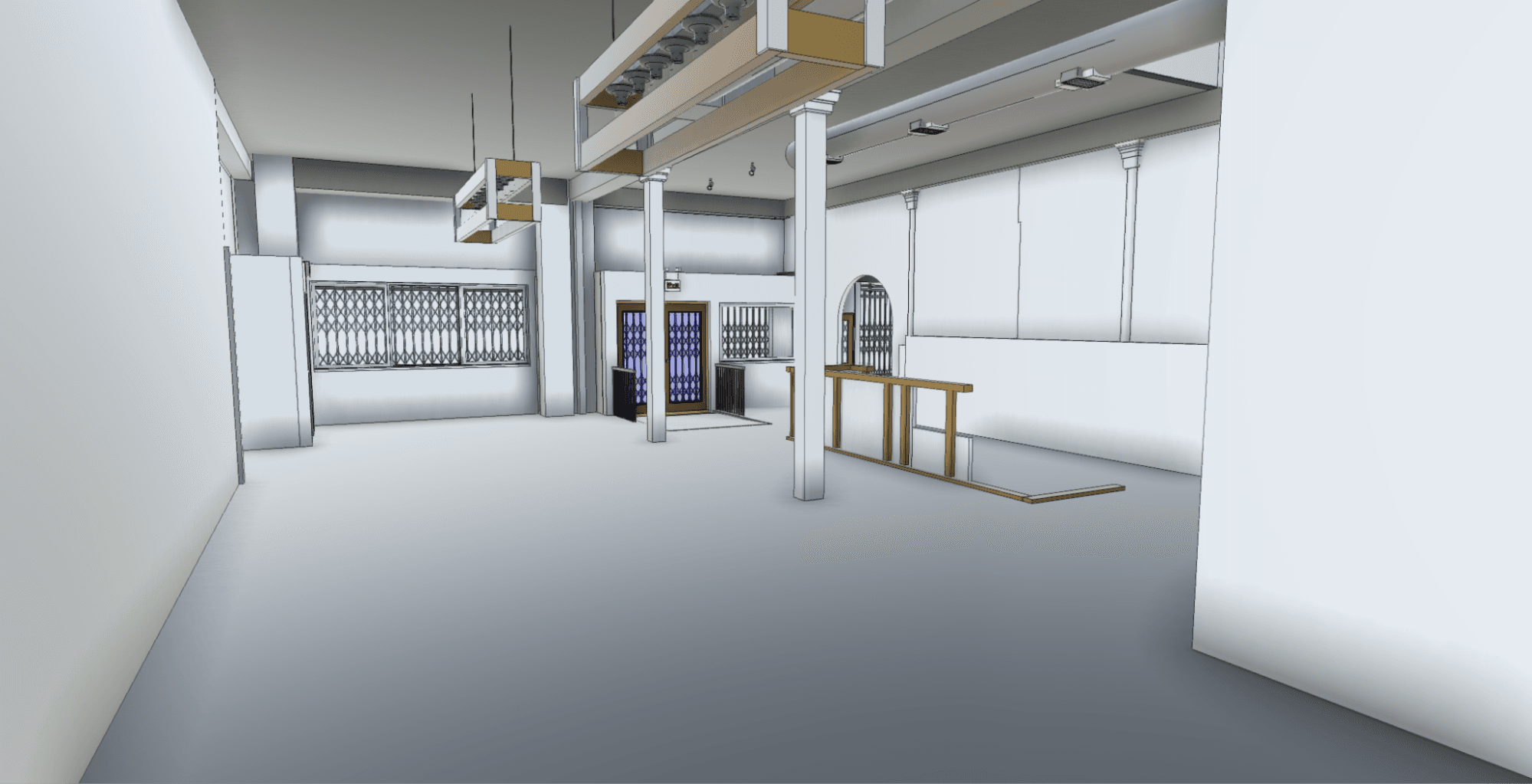

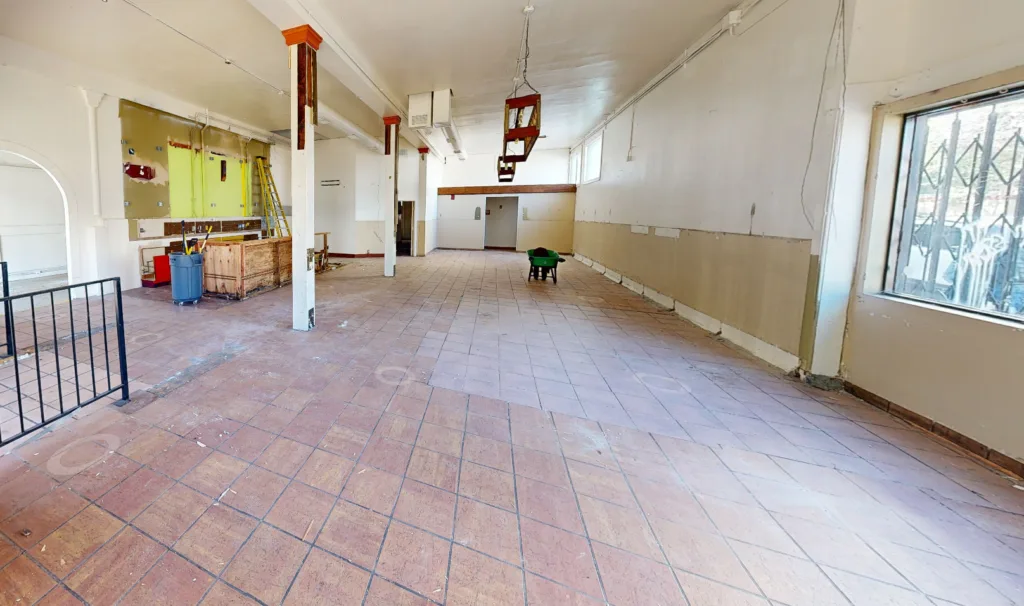

The full space was captured with 3D LiDAR scanning in just four hours on site, recording the building’s geometry at millimetre-level accuracy alongside imagery for a complete 3D virtual tour. The point cloud was registered and processed, and our team produced a coordinated Revit model and full CAD floor plans, checked against the point cloud before delivery – all completed within a 10-day turnaround.
Complete as-built documentation CAD, PDF, and a coordinated Revit model was delivered within 10 days of a four-hour site visit, alongside a full 3D virtual tour of the space. For the property owner, the value was an accurate, fast turnaround record of the existing space, giving the design team everything needed to start planning the new fit-out without delay.
