3D laser scanning and scan-to-BIM survey of a 4,500 sq ft existing restaurant space in Hayward, CA, delivered as a full coordinated Revit model with floor plans, reflected ceiling plans, and internal and external elevations, completed in just 10 days for a local architect.
Hayward, CA
4,500 sq ft
Retail & Restaurants
A local architect needed an accurate Revit model of an existing 4,500 sq ft restaurant space in Hayward to work from, covering floor plans, reflected ceiling plans, and both internal and external elevations. With the project timeline in mind, the model needed to be delivered quickly enough to keep the architect’s own design schedule on track turnaround mattered as much as accuracy here.
The brief covered the full 4,500 sq ft space: floor plans, reflected ceiling plans, and internal and external elevations, delivered as a coordinated Revit model the architect could design against directly, supported by full CAD documentation.

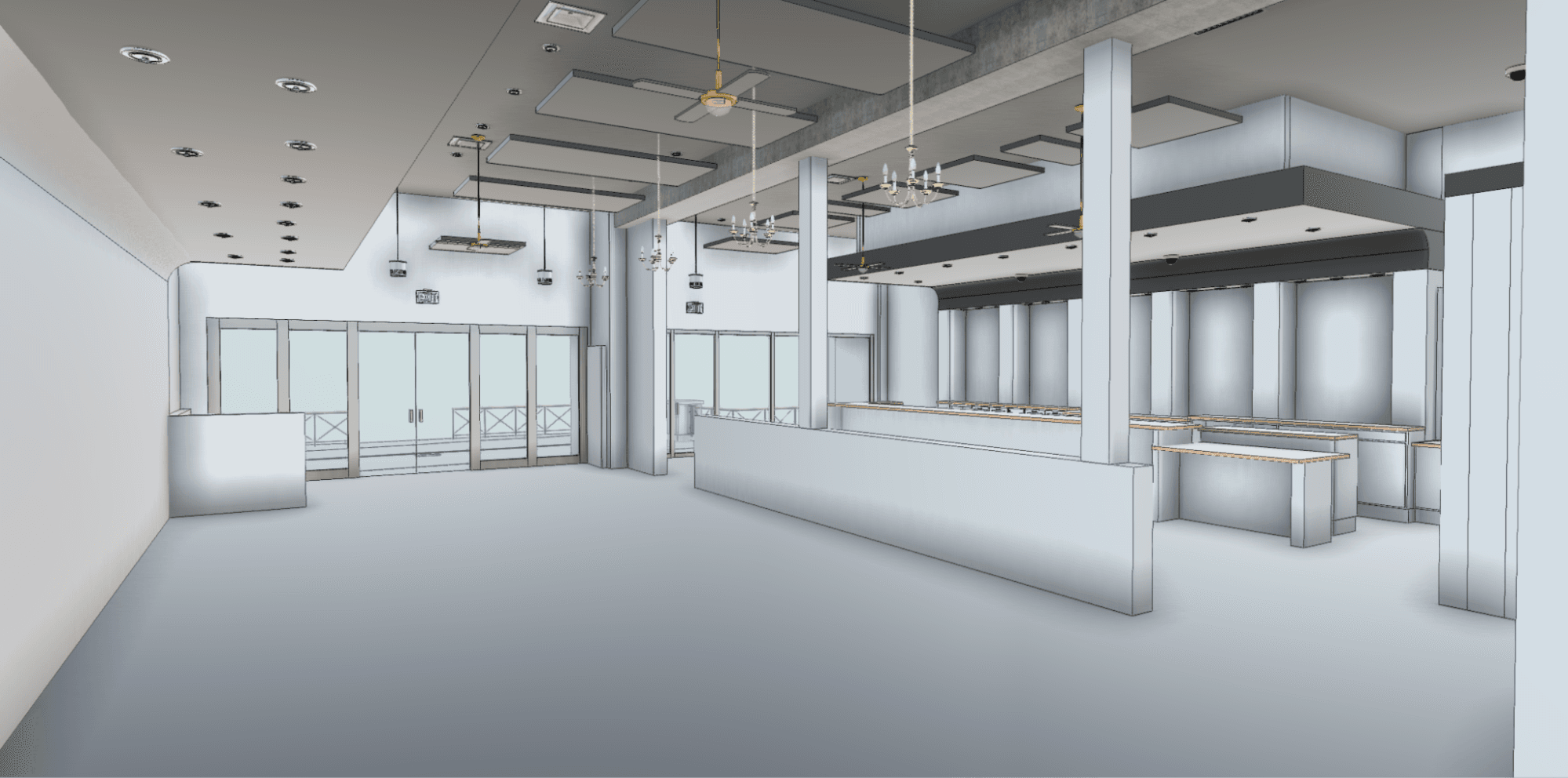

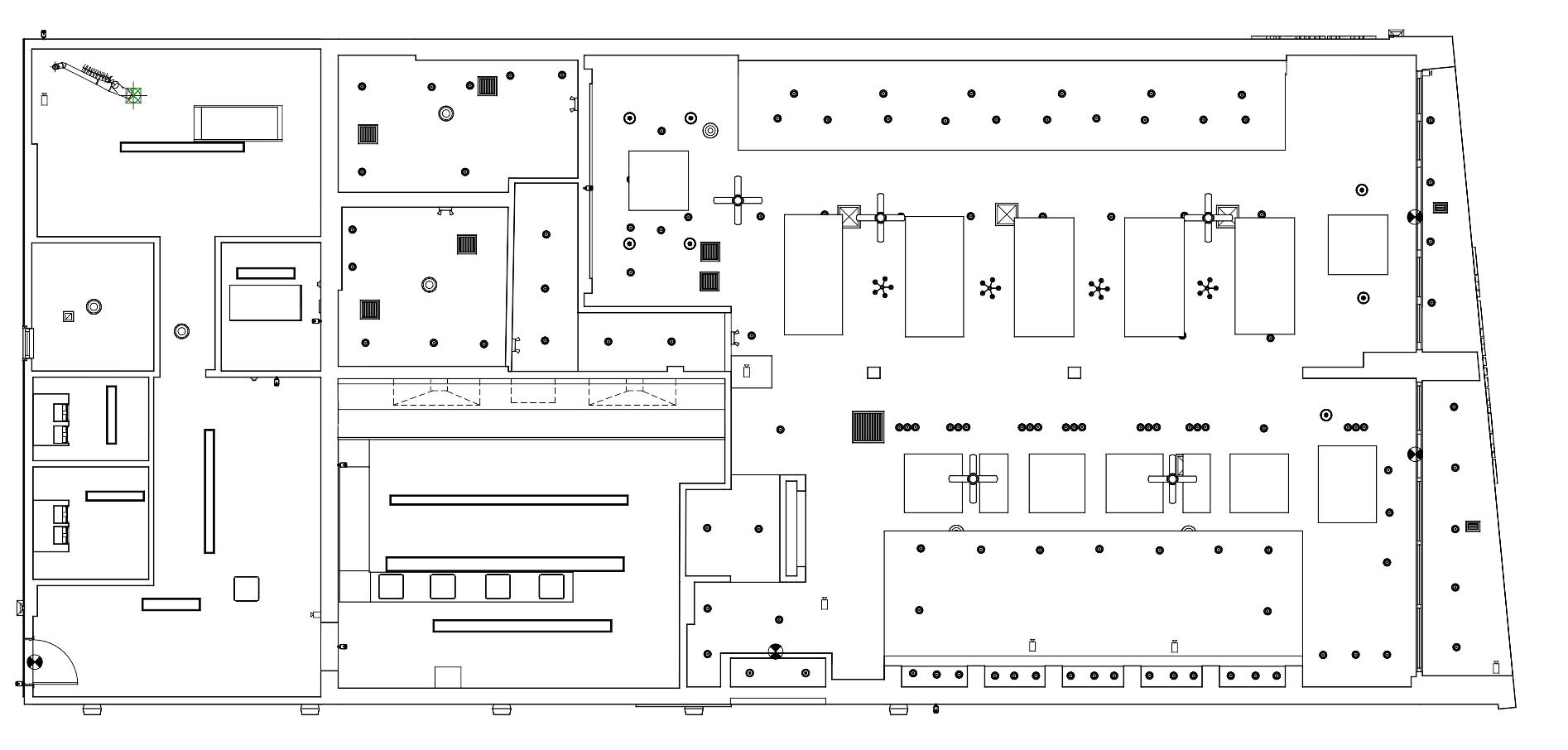

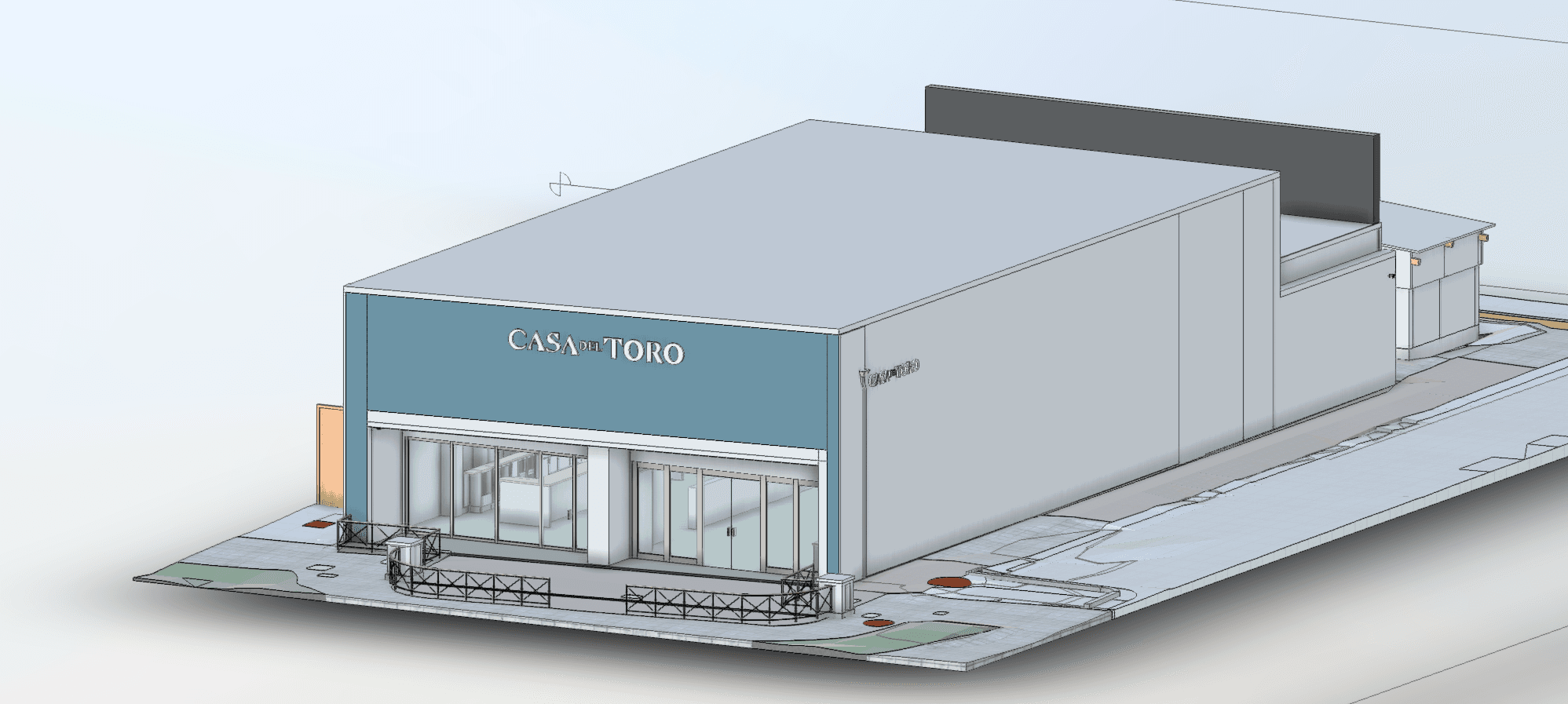

The full space was captured with 3D LiDAR scanning in just a few hours on site, recording the restaurant’s geometry, ceiling condition, and elevations at millimetre-level accuracy. The point cloud was registered and processed promptly to support the 10-day delivery window, and our BIM team produced a coordinated Revit model along with floor plans, reflected ceiling plans, and internal and external elevations, checked against the point cloud before delivery.

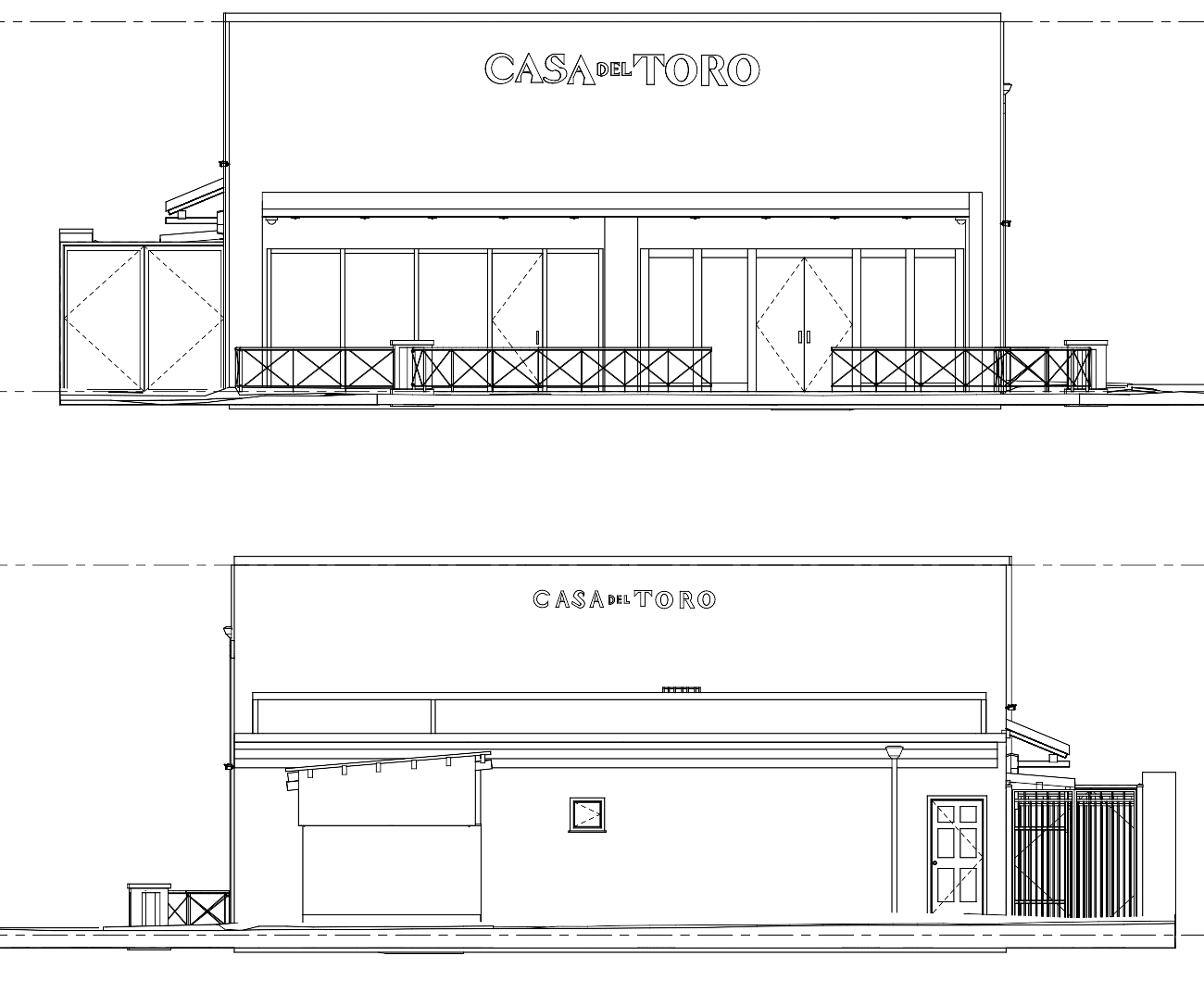

A complete, coordinated Revit model, along with full CAD floor plans, reflected ceiling plans, and internal and external elevations, was delivered within 10 days of the site visit. For the architect working on the project, the value was a fast, reliable foundation of existing conditions to design against, without delays waiting on the survey data.
Full LiDAR capture and scan-to-BIM documentation of a 148-room, 5-story Hilton-brand extended-stay hotel in Pittsburgh’s Southpointe area, covering guest rooms, common areas, staff areas, and exterior elevations, completed in 3 days on site with zero disruption to the occupied property, to support a brand-compliance renovation and PIP.
Full LiDAR capture and scan-to-BIM documentation of an irregularly shaped restaurant space at 200 Chambers Street in Tribeca, delivered in a 12-day turnaround with full floor plans, elevations, and coordinated reflected ceiling plans ahead of fit-out.
3D laser scanning and scan-to-BIM survey of a 125-room, 2-story Days Inn hotel in Windsor Locks, CT, capturing 97% of guest rooms plus all back-of-house, lobby, and breakfast areas while the property remained fully operational, delivered as full CAD, PDF, and Revit as-builts in a 2–3 week turnaround to support a brand-compliance renovation and PIP.
