Laser scanning and LOD 300 scan-to-BIM survey of a 3,580 sq ft home in Teaneck, Bergen County, NJ, delivered as Revit, CAD, and PDF as-built drawings with a 3D virtual tour. One day on site, drawings back to the architect in 8 days, ready for renovation and extension design.
Teaneck, Bergen County, NJ
3,580 sq ft
Luxury Residential
An architecture and engineering firm was preparing a renovation and extension for a 3,580 sq ft home in Teaneck, New Jersey. Before any design work could begin, they needed an accurate record of the existing house, inside and out, built to LOD 300 so the design team could work from the model directly rather than checking dimensions on site.
For a project that adds to an existing structure, small measurement errors carry forward into the extension design and surface later as clashes and rework. The architect needed drawings they could trust from the first day, and they needed them quickly.

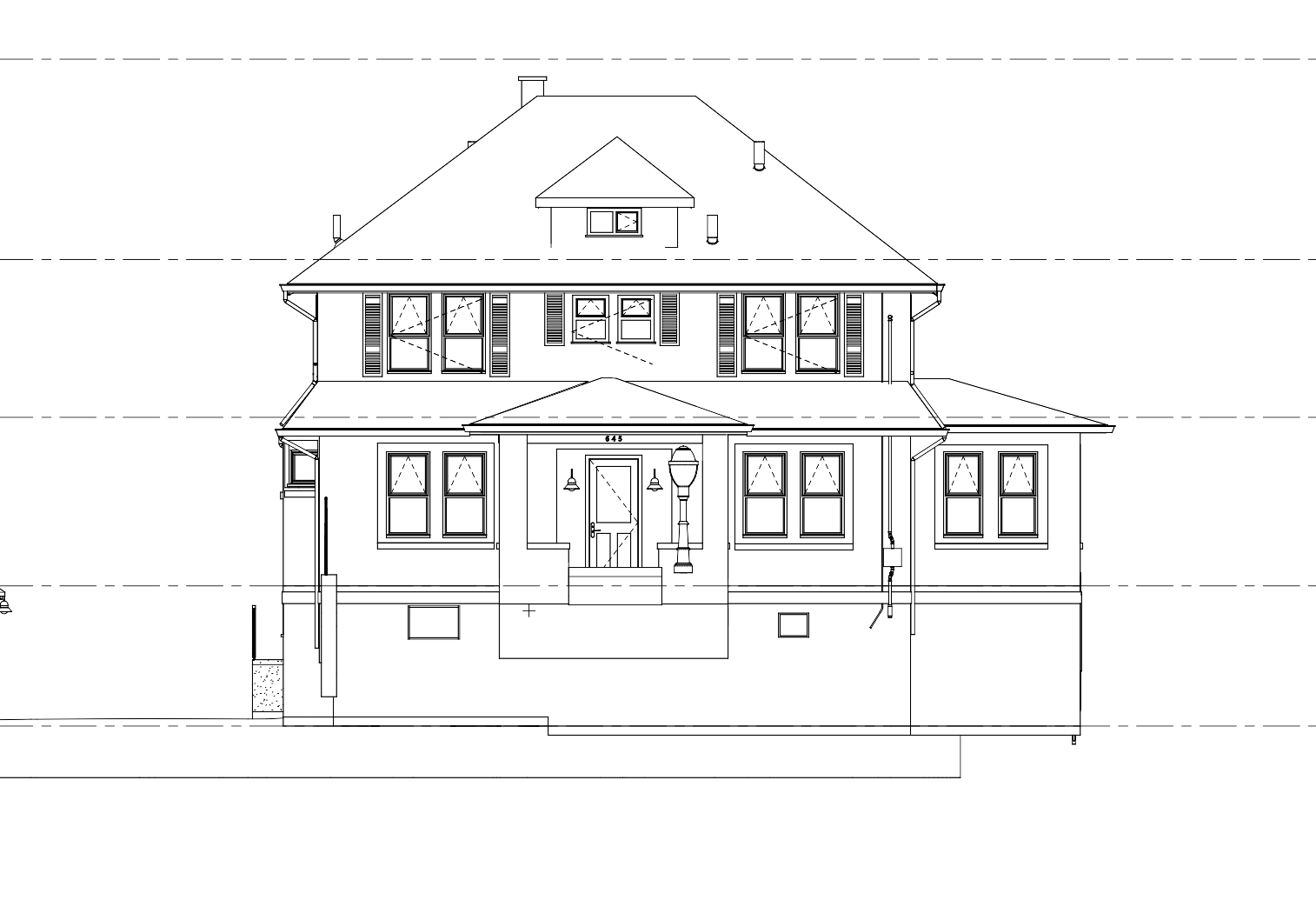

The brief covered the full house at LOD 300: floor plans for every level, reflected ceiling plans, external elevations, roof plans, and sections. Everything was delivered as a coordinated Revit model with matching CAD and PDF drawing sets, so the architect’s team could open the files in whichever format suited their workflow. A 3D virtual tour was delivered alongside the drawings, giving the wider project team a way to revisit the house remotely.
We captured the full interior and exterior of the home with 3D LiDAR laser scanning in a single day on site, recording the building’s geometry at millimetre-level accuracy along with imagery for the 3D virtual tour. The scan ran smoothly, with no gaps to revisit and no return trip needed.

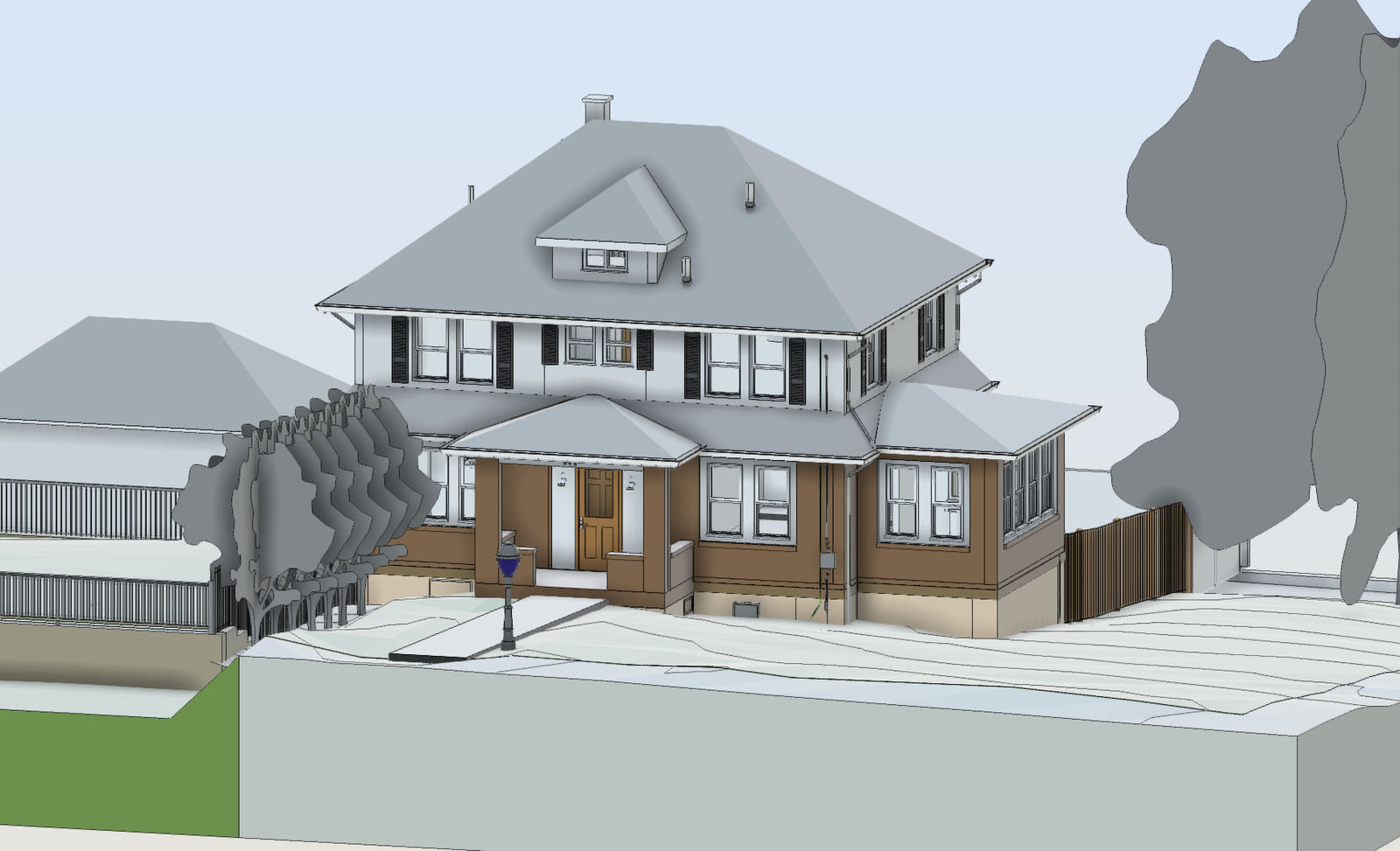

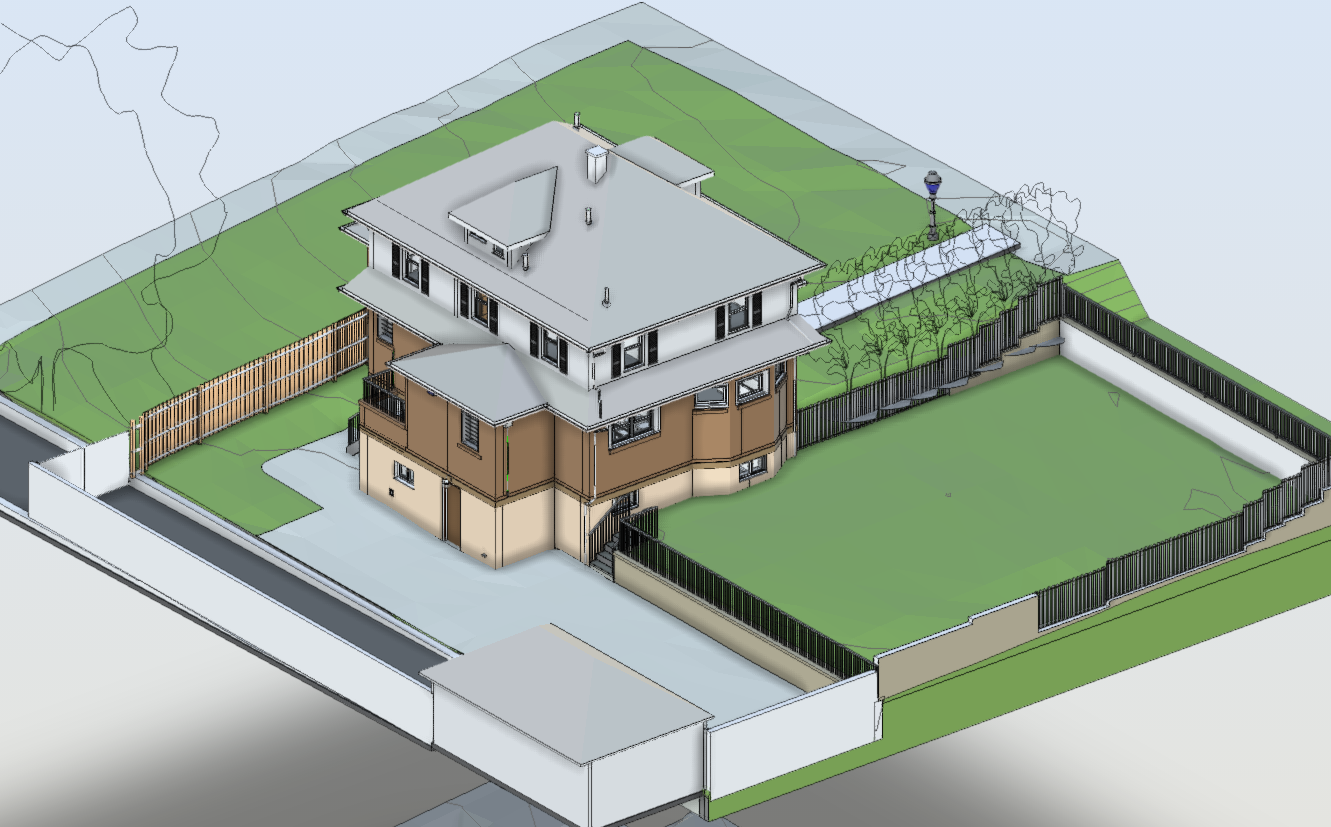

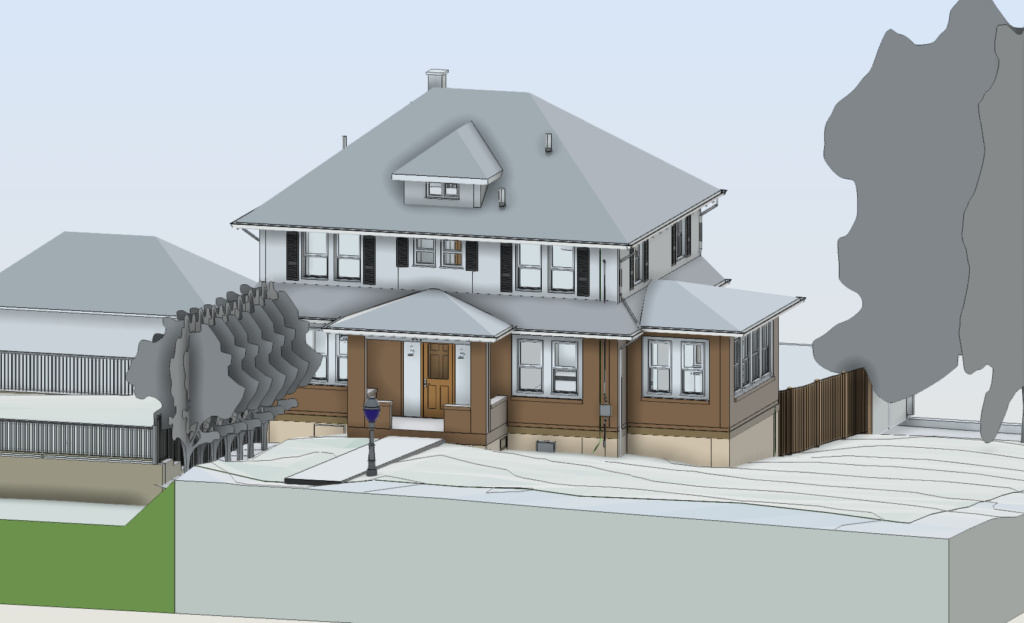

The point cloud was registered and processed, and our BIM team built the LOD 300 Revit model and produced the full drawing set in CAD and PDF. Every drawing was checked against the point cloud before delivery, and the complete package reached the client 8 days after the site visit.
The architect received a complete LOD 300 as-built package in Revit, CAD, and PDF, covering floor plans, reflected ceiling plans, external elevations, roof plans, and sections, plus a 3D virtual tour, all within 8 days of a single site visit.
For a renovation and extension in Teaneck, that meant the design team could start from a reliable model of the existing house without waiting on corrections or a second visit. It is a good example of how we work on residential projects across Bergen County and the wider New Jersey area: a focused day on site, careful processing, and drawings that hold up when design begins.
