3D laser scanning and as-built documentation of a 9,300 sq ft marble and stone distribution facility in Miami, FL, delivered as full CAD, Revit, and PDF as-builts in just 12 days from a single day on site, to meet a tight project schedule for the client’s architect and engineering team.
Miami, FL
9,300 sq ft
Warehouse & Distribution Centres
An architecture and engineering firm working on behalf of a 9,300 sq ft marble and stone distribution facility in Miami needed full existing-conditions documentation delivered fast. The project was running on a tight schedule, and the client needed quick access to the site and a fast turnaround on the drawings to keep the wider project on track – there wasn’t room for a drawn-out capture-to-delivery process.

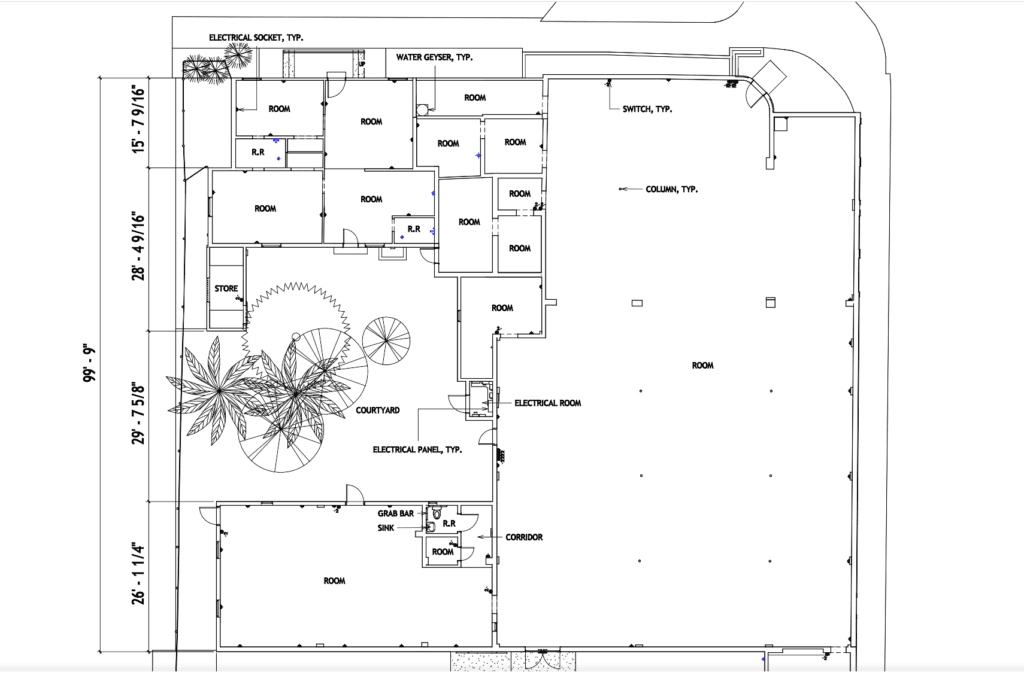

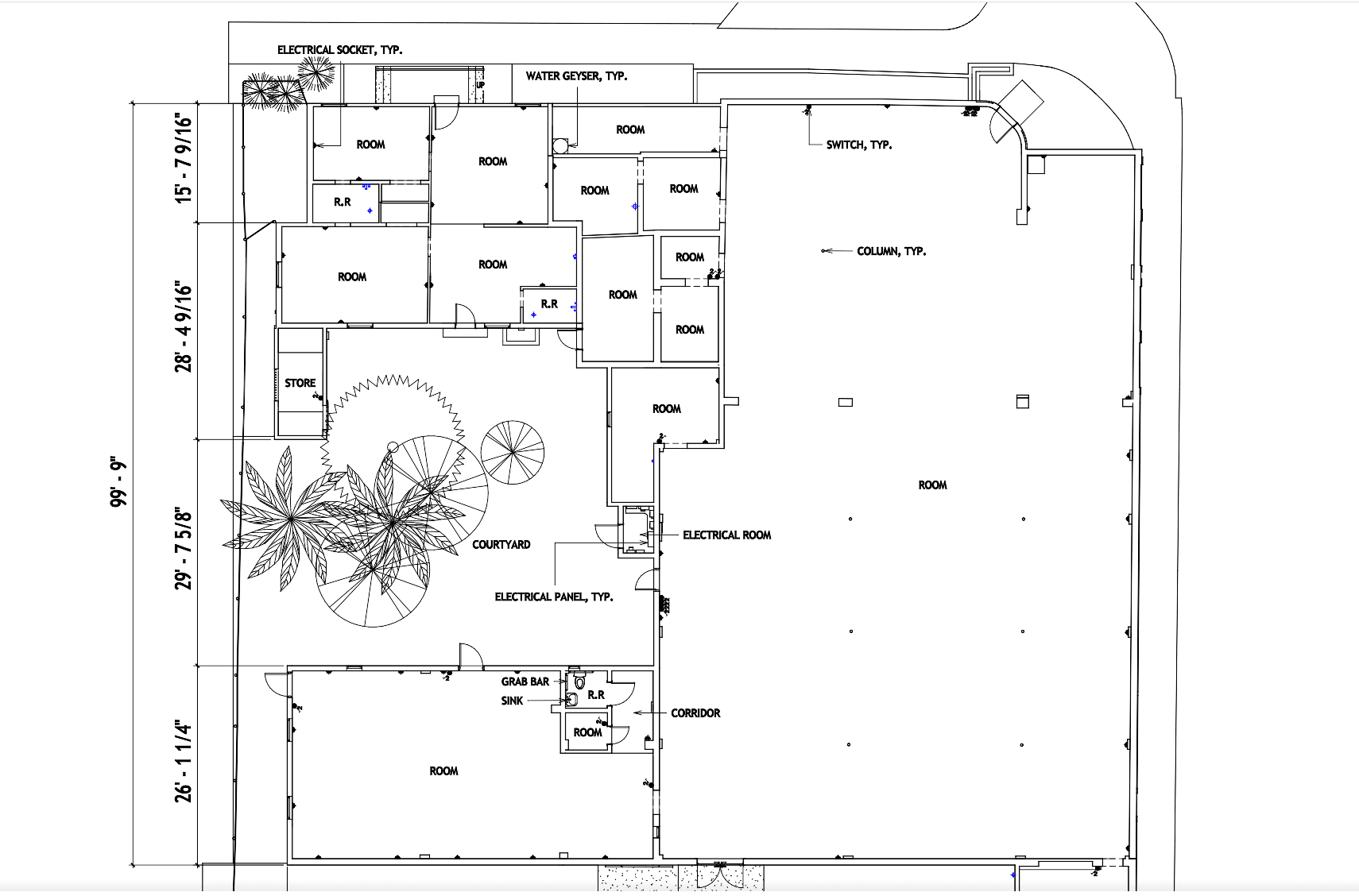

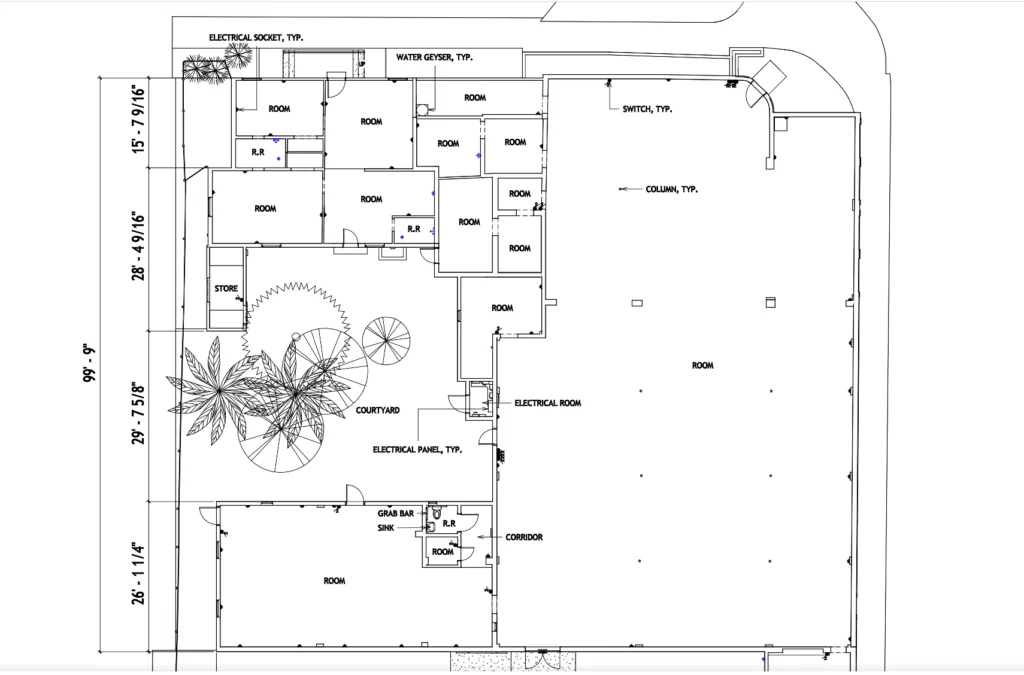

The brief covered the full 9,300 sq ft facility, with a coordinated Revit model and complete CAD floor plans delivered in PDF and CAD formats, giving the architecture and engineering team an accurate, fast-turnaround record of the existing space to work from.

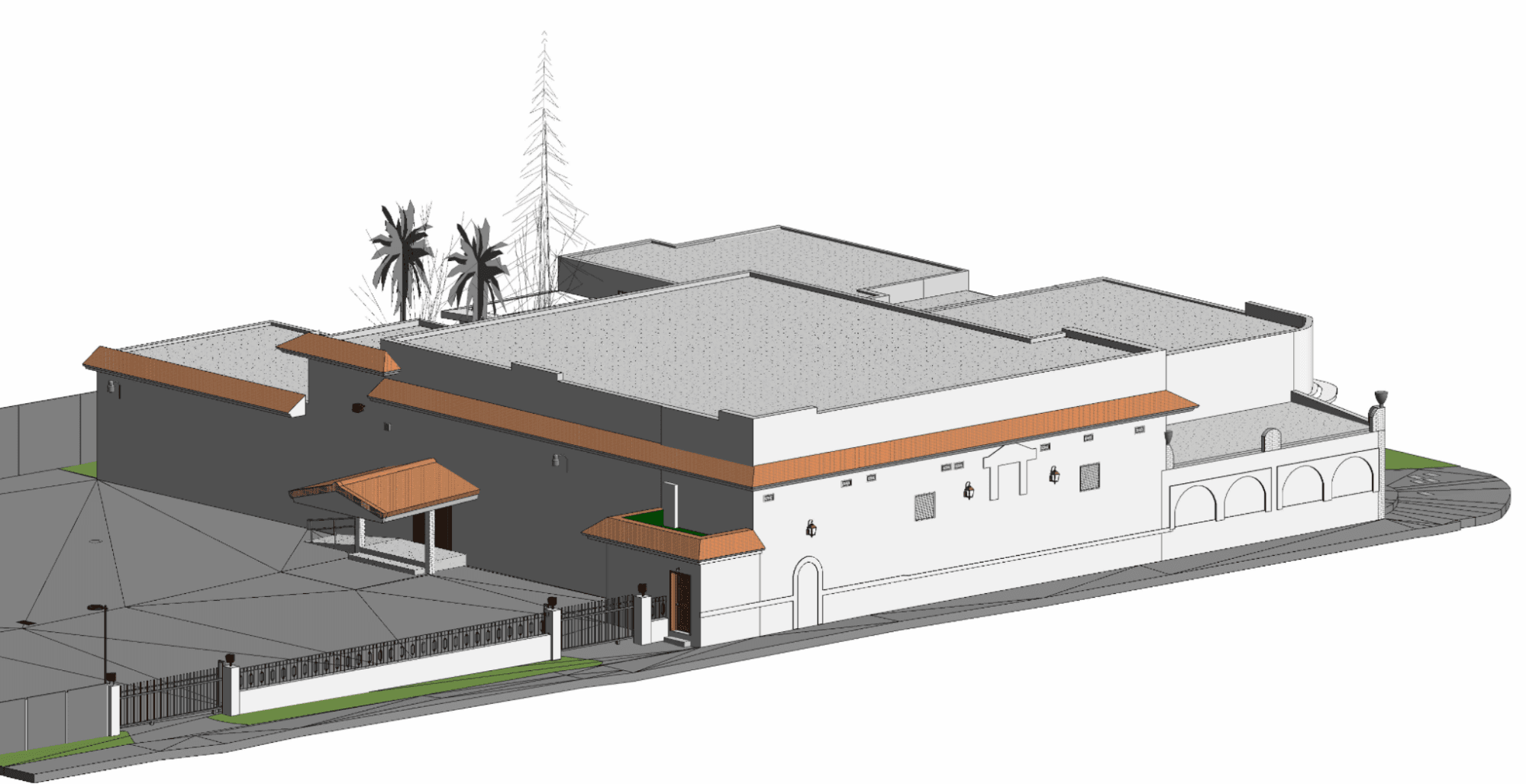

The full facility was captured with 3D LiDAR scanning in a single day on site, recording the building’s geometry accurately. The point cloud was registered and processed promptly to keep the project’s tight schedule on track, and our team produced a coordinated Revit model and full CAD floor plans, checked against the point cloud before delivery, all completed within a 12-day turnaround from capture to final documentation.
Complete as-built documentation CAD, PDF, and a coordinated Revit model was delivered within 12 days of a single day on site. For the architecture and engineering firm working to a tight project schedule, the value was quick access and a fast turnaround without any compromise on accuracy, keeping the wider project on track rather than waiting on survey data.
